CNC Machined ABS Plastic Cover for Consumer Electronics

A consumer electronics cover may look simple from the outside, but its manufacturing requirements are often defined by what is hidden inside.

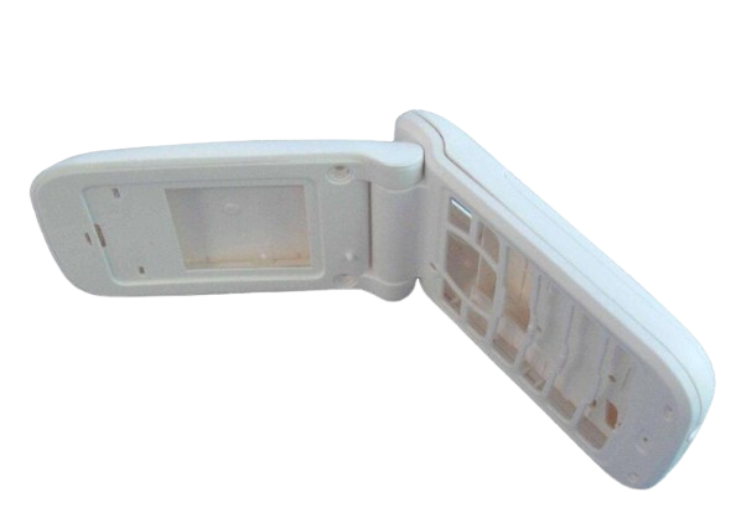

This project involved a custom ABS plastic cover manufactured by CNC machining from customer-supplied 3D CAD data and technical drawings. The product consists of two connected shell-type sections with internal cavities, functional openings and a hinge-style joint.
The exterior uses smooth, rounded geometry typical of consumer electronic products, while the inside contains the space and local structures required by the product design.
For this type of development work, plastic cover CNC machining allows engineers to evaluate the actual enclosure geometry, internal space and mechanical movement using physical ABS parts.


Project Details

A Thin-Walled Cover Is Different from a Solid CNC Part

Most CNC machining starts with solid stock, but the finished geometry of an electronic cover is largely hollow.
Material has to be removed to create the internal cavity while leaving the walls, edges and local features that form the final shell.
As the cavity becomes deeper, the remaining ABS structure becomes less rigid than the original material block. The way the part is held and the order in which material is removed therefore become increasingly relevant during machining.
This is particularly important around narrower wall sections, openings and the connection area between the two sections.
For ABS plastic cover CNC machining, the manufacturing strategy needs to follow the geometry of the enclosure rather than treating the component like a conventional solid block.


One Part, Two Very Different Surfaces

The inside and outside of this electronic cover perform very different jobs.
The outer surface defines the product shape. Rounded corners, smooth transitions and visible edges contribute directly to the appearance of the finished electronic device.
Turn the component over and the priority changes.
The internal side provides space for the components that will eventually sit inside the enclosure. Recessed areas, openings and local geometry are related more closely to assembly and function than to appearance.
This creates a useful distinction during manufacturing:
Outside: product form and appearance
Inside: clearance, interfaces and component space
A CNC machined prototype needs to reproduce both without treating them as the same type of surface.


The Joint Is Part of the Product Function

The two sections shown in this project are connected around a hinge-style area.
That makes the enclosure different from a conventional top-and-bottom cover that is simply fastened together.
Here, the relative position of the two sections changes during use.
The joint geometry can therefore influence how the product opens, where the two sections stop and how much clearance remains between neighboring surfaces during movement.
A physical CNC machined ABS prototype gives the development team an opportunity to test this relationship using actual plastic components.
Instead of checking only whether the two parts fit together, engineers can evaluate whether they move together as intended.


Internal Cavity Means More Than Empty Space

Inside an electronic enclosure, available space is part of the engineering design.
A PCB, display, controls, connectors, wiring or other components may need to occupy specific areas within the cover.
This means a recessed area or opening should not always be viewed as an isolated CNC feature. Its position may be determined by another component in the assembly.
For electronic housing projects, providing the complete assembly CAD can therefore be useful when internal relationships are important.
It gives the machining team a better understanding of what occupies the space behind the plastic surfaces and which areas interact directly with other parts.


Evaluating Movement with Real ABS Parts

CAD can show the intended movement of a hinged product, but a physical prototype provides another level of feedback.
Once the CNC machined sections are assembled, the customer can open and close the housing and observe what happens around the joint.
Typical questions include:

• Is there enough clearance throughout the movement?
• Do the housing sections interfere at any point?
• Does the joint reach the intended position?
• Is sufficient space maintained around nearby components?
• Do the exterior surfaces meet as intended when the product is closed?

This is a different type of validation from checking a stationary plastic housing.
For this project, movement is part of the product function, so it also becomes part of what the prototype needs to demonstrate.


CNC Machining for Electronic Product Prototypes

The first physical housing can reveal things that were not obvious during CAD review.
A local area may need additional clearance. An opening may need to shift. The internal cavity may need to accommodate a changed component. The hinge geometry may also require adjustment after movement is tested.
At this stage, CNC machining allows the customer to revise the CAD model and produce an updated plastic cover without first changing production tooling.
This makes plastic CNC machining services useful for consumer electronics development when the purpose of the prototype is to build, assemble and test the actual enclosure design.
The customer is not limited to evaluating how the product looks—they can also evaluate how it works.


Appearance Preparation for Consumer Electronics Covers

Consumer electronics covers are visible parts, so the machined surface is often only one stage of the finished prototype.
After CNC machining, ABS components can be sanded and prepared for painting or other appearance finishing according to the customer's requirements.
The exterior normally receives more cosmetic attention than hidden internal areas.
This allows manufacturing effort to follow the function of each surface rather than applying the same finishing requirement everywhere.
For development projects, the finished housing can then be used for engineering evaluation, assembly testing and visual review.


Plastic Cover CNC Machining Services for Electronic Products

YS Precision provides custom plastic cover CNC machining services for consumer electronics and other electronic products based on customer 3D CAD models and technical drawings.
We machine components such as:

• electronic plastic covers;
• consumer electronics housings;
• handheld device enclosures;
• display covers and bezels;
• control device housings;
• front and rear covers;
• hinged plastic enclosures;
• internal plastic components.

Materials available for CNC machining include ABS, PC / Polycarbonate, POM / Delrin, Nylon, PMMA, PEEK, PEI, PP and PTFE.
From an individual plastic cover to a set of related enclosure components, manufacturing is based on the customer's actual design rather than a standard housing specification.


Send Us Your Electronic Plastic Cover Design

If you need CNC machining for a custom electronic plastic cover or housing, send us your 3D CAD data and technical drawings for review.
Useful RFQ information includes:
3D CAD + 2D Drawings + Material + Quantity + Important Interfaces + Surface Requirements
For housings with hinges or other moving sections, providing the assembly model can help clarify the intended movement and clearance between components.
YS Precision supports plastic CNC machining for custom electronic covers, housings and enclosures, from functional prototypes to low-volume production.
