Custom Aluminum CNC Turned Parts for Machinery Production

When a small machined component moves from prototype quantities to 20,000 pieces per batch, the manufacturing priorities change. Cycle time, secondary operations, thread consistency and process stability all begin to affect the final cost.

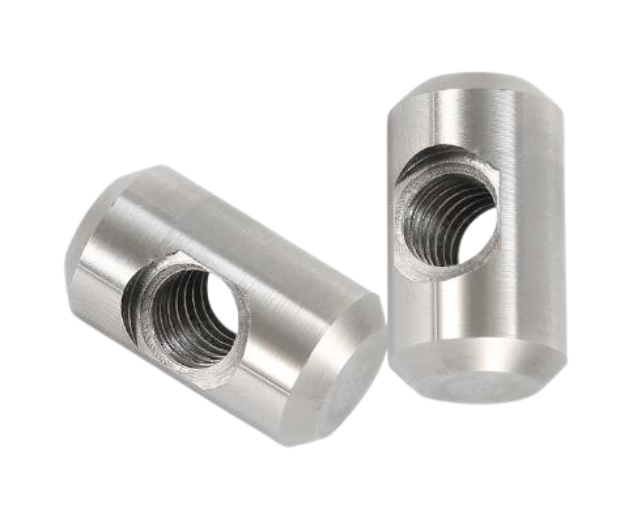

This custom aluminum CNC turned part is manufactured for general machinery and supplied to a customer in the United States. The component measures approximately 30 × 10 mm, with critical dimensions specified to ±0.05 mm.
The part has a compact cylindrical body with machined end faces and chamfered edges. A transverse M4 threaded hole requires cross drilling and tapping in addition to the main turning operation.
For this project, the geometry is not unusually complex. The real manufacturing requirement is to produce the turned body, M4 thread and finished edges consistently across a 20,000-piece production run.


Project Specifications

This is a made-to-drawing CNC machined part, not a standard fastener. Dimensions, thread requirements and other functional features are manufactured according to the customer's engineering drawing.


Why 20,000 Pieces Changes the Machining Plan

The round body is well suited to CNC lathe machining. Turning the outside diameter and end faces is relatively straightforward.
The side M4 thread adds two additional operations: cross drilling and tapping.
For prototypes, an extra setup or manual operation may have little effect on the overall project cost. At 20,000 pieces, every repeated operation becomes significant.
For example, just 10 seconds of unnecessary processing per part adds more than 55 hours of cumulative processing time across the complete batch.
This is why we review the entire manufacturing sequence before production:
Bar Stock → CNC Turning → Cross Drilling → M4 Tapping → Deburring → Inspection → Packing
The objective is not to make the process more complicated. It is to avoid unnecessary handling and create a practical route for repeat production.
For production buyers comparing CNC turning suppliers, this process planning can directly influence unit cost, lead time and repeatability.


M4 Thread Consistency Matters in Assembly

The transverse M4 thread is a small feature, but it has a direct function in the customer's assembly.
Before tapping, the pilot hole needs to be correctly machined. During production, tapping conditions, chip removal and tool wear can influence the finished thread.
This becomes increasingly important during a long production run because tap condition changes with use.
Where required by the drawing or inspection plan, appropriate thread gauges can be used to verify the threaded feature.
The practical requirement is simple: the mating M4 hardware should assemble correctly when the components reach the customer's production line.
For CNC turned threaded parts, thread functionality is therefore part of production quality—not just another dimension on the drawing.


Cross Drilling and Deburring

Cross drilling into a cylindrical surface can leave burrs around the hole entrance. Drilling and tapping may also create sharp edges that need to be removed before the component is ready for assembly.
At prototype quantities, this may be handled with more manual work.
For 20,000 aluminum turned parts, deburring needs to be both efficient and repeatable.
The goal is to remove unwanted edges while protecting the surrounding machined surfaces and maintaining the geometry required by the drawing.
Considering deburring during process planning also helps avoid adding inefficient finishing operations after the main machining route has already been established.


Holding ±0.05 mm Across a Production Batch

Critical dimensions on this component are specified to ±0.05 mm.
We do not describe this as an unusually tight CNC tolerance. The important requirement for this project is maintaining the specified dimensions consistently across the production batch.
Initial parts are checked against the latest drawing before continuous production. Selected dimensions can then be monitored during machining according to the inspection requirements of the project.
Our production control can include first-piece verification, in-process inspection and outgoing inspection.
For 20,000-piece production, in-process checks are particularly useful because dimensional changes can be identified while machining is still underway.
The aim is to control the features that matter without adding unnecessary tolerance or inspection cost to dimensions that do not require it.


Production Cost Is More Than CNC Cycle Time

When purchasing custom CNC turned parts, buyers naturally compare piece prices. But the turning cycle is only one part of the cost.
For this component, the production cost can also be influenced by:

• Aluminum grade and raw material size
• CNC turning cycle time
• Cross-hole drilling
• M4 tapping
• Tool and tap life
• Deburring method
• Inspection frequency
• Part handling
• Surface treatment, if required
• Packing requirements

This is why quantity information matters during quotation.
The most economical process for 20 prototypes may not be the best route for 20,000 production parts.
For repeat manufacturing, process planning needs to balance drawing requirements, cycle time, secondary operations and unit cost.


CNC Turning Services for Machinery Components

YS Precision provides CNC turning services for custom components used in general machinery, automation equipment and industrial applications.
We manufacture made-to-drawing parts including:

• Aluminum threaded parts
• Pins and locating components
• Shafts and stepped shafts
• Bushings and sleeves
• Spacers
• Connectors
• Cylindrical mounting components
• Parts requiring cross drilling or tapping
• Turned components with secondary machined features

Depending on the part geometry and production quantity, manufacturing can involve CNC turning, CNC lathe machining, Swiss-type CNC turning, turn-mill machining, drilling, tapping and secondary milling.
Materials include aluminum, stainless steel, brass, copper, carbon steel and engineering plastics.
This allows the machining route to be selected according to the actual drawing rather than treating every cylindrical component as the same type of lathe job.


What Production Buyers Should Include in an RFQ

For made-to-drawing machining, the overall dimensions alone are not enough for an accurate production quotation.
If you are sourcing a CNC turning manufacturer for a new or existing production part, send us:

• 2D drawing and/or 3D model
• Material and grade
• Required quantity
• Critical tolerances
• Thread specifications
• Surface treatment requirements
• Inspection requirements
• Estimated annual usage

For threaded components like this one, these details allow us to review the complete manufacturing route—including turning, drilling, tapping, deburring and inspection—before quotation.
This is particularly useful for repeat orders where the manufacturing process needs to remain practical as quantities increase.


Need a CNC Turning Supplier for Repeat Production?

YS Precision manufactures custom aluminum CNC turned parts and other made-to-drawing components for machinery and industrial equipment.
If you are evaluating a CNC turning supplier, CNC turning manufacturer or CNC machining supplier for production parts, we can review your drawings, tolerances, quantity and secondary machining requirements.
We support prototypes, small batches and repeat production, including turned components requiring cross drilling, tapping, milling and other secondary operations.
Send your 2D/3D drawings and production quantity to YS Precision for a manufacturing review and quotation.
