5-Axis CNC Machined Aluminum Automation Fixture Components

Precision CNC Fixture Machining for Automated Equipment and Industrial Applications

Custom automation fixtures require more than accurate dimensions. They need stable positioning, repeatable performance, and reliable machining consistency throughout production.

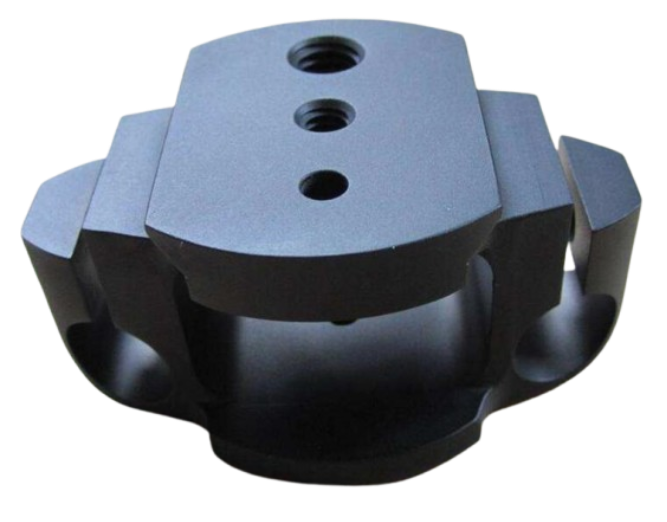

This project involved manufacturing a custom 5-axis CNC machined aluminum fixture component for an industrial automation system.

Manufactured from 6061-T6 aluminum, the fixture features a complex multi-face structure with curved locating areas, mounting surfaces, and M4 threaded holes.

Based on the customer's 2D drawings and 3D CAD model, the component was produced using 5-axis CNC machining to maintain the relationship between multiple reference surfaces and functional features.

The fixture size is approximately 180 × 120 × 72 mm, with a production quantity of around 700 pieces.

After CNC machining, the parts received fine sand blasting and black anodizing before inspection and shipment to Israel.

Project Overview

Why This Automation Fixture Required 5-Axis CNC Machining

This fixture contains multiple machining surfaces that need to maintain accurate relationships with each other.

Unlike simple aluminum brackets, precision fixtures depend on:

• Accurate locating surfaces
• Stable mounting positions
• Repeatable assembly performance
• Consistent geometry between batches

For this component, using traditional machining methods would require multiple repositioning operations.

Repeated setups can introduce:

• Alignment variation
• Additional machining time
• Reduced production consistency

The 5-axis CNC machining process allowed us to complete complex features with fewer setups while maintaining better control of:

• Reference surfaces
• Feature relationships
• Overall accuracy

This makes 5-axis machining an effective solution for custom CNC machined fixtures with complex geometries.

Precision CNC Fixture Machining Based on Customer Designs

Automation equipment manufacturers often require custom fixtures designed around their own machines and production processes.

We manufacture precision fixture components based on:

• Customer 2D engineering drawings
• 3D CAD models
• Assembly requirements
• Material specifications

Before production, our engineering team reviews:

• Machining feasibility
• Tool accessibility
• Fixture setup strategy
• Critical dimensions

This helps identify potential manufacturing issues before machining begins.

Machining Challenges of Multi-Surface Aluminum Fixtures

The main challenge of this component was not only machining the shape, but maintaining functional relationships between different areas.

Important machining considerations included:

Complex Workholding

The irregular fixture geometry required stable clamping to prevent movement during machining.

Multiple Reference Features

Different machined surfaces needed to maintain accurate positioning relationships.

Batch Production Consistency

For a quantity of 700 pieces, every fixture needed to provide the same performance after installation.

The machining process was optimized through:

• Setup planning
• Tool path optimization
• Cutting parameter adjustment
• Process inspection

6061-T6 Aluminum Machining with Black Anodized Finish

6061-T6 aluminum is widely used for automation fixtures because it provides:

• Excellent machinability
• Good mechanical performance
• Lightweight characteristics
• Stable anodizing results

After CNC machining, the fixture components were finished with:

Fine Sand Blasting + Black Anodizing

This finishing process provides:

• Uniform matte appearance
• Improved corrosion resistance
• Surface protection
• Professional industrial appearance

Quality Control for Precision Fixture Components

For custom CNC machined fixtures, quality consistency directly affects equipment performance.

Our inspection process includes:

• Material verification
• Critical dimension inspection
• Thread inspection
• Surface finish checking
• Final quality inspection

Finished parts are carefully protected during packaging to prevent surface damage during international transportation.

Custom CNC Machining Service for Automation and Industrial Components

YS Precision provides custom machining solutions for:

• CNC machined automation fixtures
• Precision jig components
• Aluminum fixture parts
• Industrial equipment components
• Custom mechanical structures

Our capabilities include:

• 5-axis CNC machining
• Aluminum CNC machining
• Precision milling
• Thread machining
• Surface finishing
• Quality inspection
• Export support

We support customers from engineering review through production manufacturing.
