CNC Machined 6061-T6 Aluminum Chamber Body for Semiconductor Equipment

Precision Aluminum Machining for Semiconductor Equipment Mechanical Components

Semiconductor equipment requires mechanical components with high dimensional stability, accurate interfaces, and consistent machining quality.

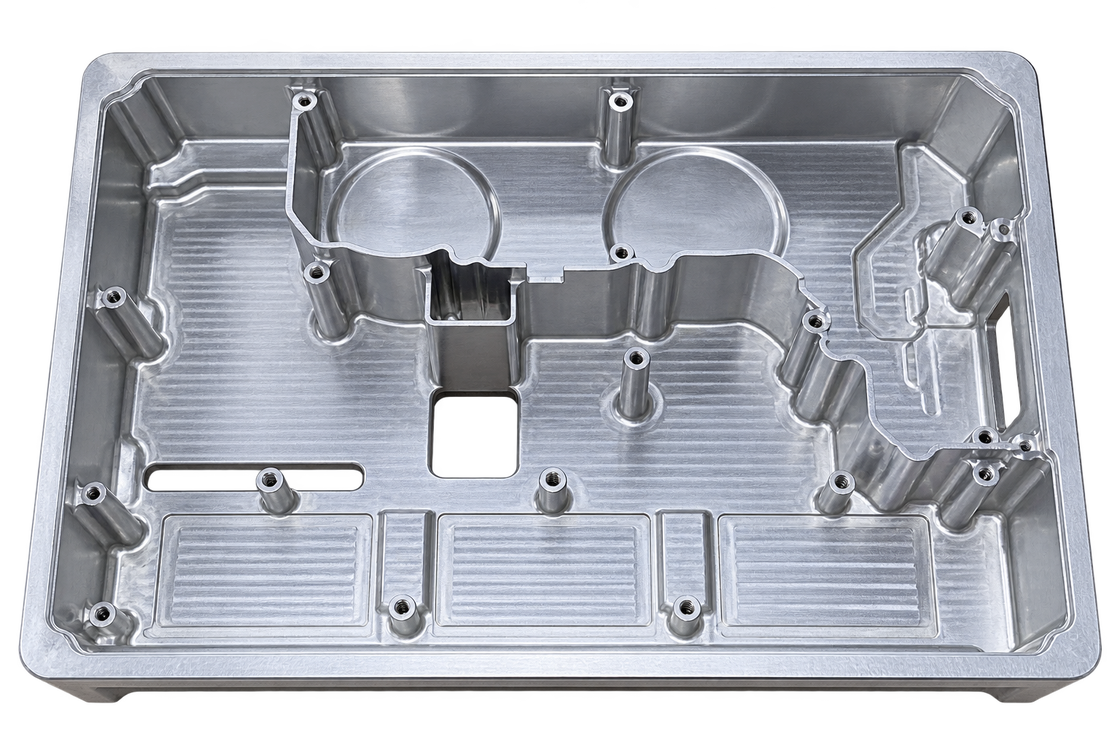

This project involved manufacturing a custom CNC machined aluminum chamber body used in a semiconductor equipment system.

The component was manufactured from 6061-T6 aluminum based on the customer's 3D CAD model and 2D engineering drawings.

Unlike standard CNC machined housings, this chamber body contains:

• Deep internal cavities
• Multiple mounting bosses
• Complex pocket structures
• Precision assembly interfaces

The part size is approximately 390 × 290 mm. After precision CNC milling, the components received clear anodizing (natural anodizing) and were inspected before shipment to Israel.

Semiconductor Equipment Chamber Body Manufacturing Overview

Precision CNC Machining of Aluminum Chamber Structures

For semiconductor equipment, aluminum structural components are often required to combine:

• Lightweight design
• Mechanical rigidity
• Stable dimensions
• Accurate assembly surfaces

This chamber body required more than machining the external profile.

The critical requirement was maintaining the relationship between:

• Internal cavity dimensions
• Mounting boss locations
• Machined reference surfaces
• Assembly interfaces

During CNC process planning, machining sequence and workholding methods were considered carefully to maintain stability throughout production.

Complex Cavity Machining for Semiconductor Equipment Components

The main feature of this component is the large internal cavity structure.

Deep cavity aluminum machining requires careful control because:

• Material removal can affect part stability
• Internal areas require proper tool access
• Thin wall sections can be sensitive to machining forces

The manufacturing process was developed around:

• Rough machining strategy
• Stress release consideration
• Finishing sequence
• Final dimensional inspection

This approach helps maintain the geometry required for semiconductor equipment assembly.

6061-T6 Aluminum CNC Machining and Clear Anodizing

6061-T6 aluminum is widely used for semiconductor equipment mechanical components because it offers:

• Excellent CNC machining performance
• Stable mechanical properties
• Good corrosion resistance
• Good surface treatment compatibility

For this chamber body, the customer selected:

Clear Anodizing (Natural Anodizing)

The finish provides:

• Surface protection
• Improved corrosion resistance
• Clean aluminum appearance

Because anodizing can influence surface characteristics, finishing requirements were considered during the CNC machining stage.

Manufacturing from Engineering Drawings and CAD Data

Semiconductor equipment companies often design highly customized mechanical structures that cannot be produced from standard components.

This chamber body was manufactured from:

• Customer 3D CAD data
• 2D engineering drawings
• Material specifications
• Surface finishing requirements

Before machining, engineering review focused on:

• Feature accessibility
• Tool path planning
• Clamping method
• Critical dimensions

The goal was to ensure the machining process matched the equipment design intent.

Low-Volume Precision Manufacturing for Semiconductor Equipment Development

Many semiconductor equipment projects require limited quantities of specialized mechanical parts.

These components are not typical mass-production parts. They require:

• Engineering communication
• Process optimization
• Stable CNC machining
• Consistent inspection results

This type of manufacturing supports:

• New equipment development
• Machine upgrades
• Customized semiconductor systems
• Specialized industrial applications

Quality Control for Precision CNC Machined Aluminum Components

For semiconductor equipment mechanical parts, quality depends on both dimensional accuracy and surface condition.

Inspection includes:

• Material verification
• Critical dimension measurement
• Internal feature inspection
• Assembly interface checking
• Surface finish inspection

After clear anodizing, the chamber bodies were carefully protected and packaged for international shipment.

Precision CNC Machining Experience for Semiconductor Equipment Parts

Producing semiconductor equipment components requires a combination of machining capability and engineering understanding.

For this chamber body project, the key manufacturing challenges were:

• Machining a large aluminum cavity structure
• Maintaining accurate internal features
• Coordinating CNC machining with anodizing requirements
• Delivering consistent low-volume production quality

This type of project represents the precision aluminum machining capability required by semiconductor equipment manufacturers and industrial technology companies.
