Custom ADC12 Aluminum Die Cast Support Bracket for Mechanical Equipment

For a structural support bracket, dimensional accuracy matters most where the part connects to the surrounding assembly. Mounting points need to align, the upper support must locate correctly, and the complete structure needs to remain stable after casting and finishing.

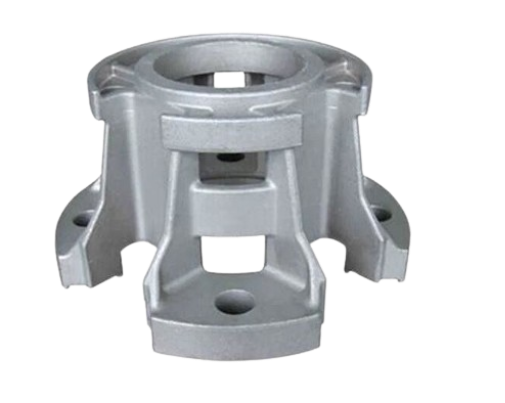

This custom aluminum die cast support bracket is manufactured from ADC12 according to customer-supplied 2D drawings and 3D CAD data. Measuring approximately 130 × 110 × 60 mm, the part combines an upper circular support, multiple structural arms, open sections and mounting feet in one integrated casting.
A dedicated 2-cavity high-pressure die casting die is developed for the component. Tooling development typically takes around 4–6 weeks, followed by trial casting and sample inspection. The samples are then evaluated in the customer's actual assembly before production is released.
After approval, the aluminum brackets are powder coated, inspected and prepared for shipment to Norway.

Project Overview

One Casting, Multiple Structural Features

The geometry of this bracket is more complex than a conventional flat mounting plate.
A circular upper section is connected to several supporting arms that extend toward separate mounting feet. Open areas between these supports reduce unnecessary material while retaining the structural form defined by the customer's design.
High-pressure die casting makes it possible to form these features as one integrated aluminum component rather than fabricating the structure from several individual parts.
For suitable designs, this can eliminate additional welding or joining operations while maintaining a repeatable relationship between the upper support and the mounting interfaces.
That positional relationship is important. A mounting hole may meet its individual dimensional requirement, but the bracket will only assemble correctly when the mounting features and supported area are positioned correctly relative to one another.

DFM Before Cutting the Die

For a custom die casting project, manufacturability should be reviewed before tooling begins.
With this multi-sided structure, DFM is not limited to checking whether molten aluminum can fill the cavity. We also consider how the part will release from the die, which features may require secondary machining, and how the final bracket will interface with the customer's equipment.
The review can include:

• parting-line selection;
• draft angles and release direction;
• wall and rib thickness;
• transitions between heavier and thinner sections;
• fillets and corner radii;
• gate, runner and overflow layout;
• venting and filling behavior;
• ejection locations;
• machining allowance on critical interfaces;
• coating and masking requirements.

These decisions connect tool design, casting stability, secondary operations and final assembly.
Identifying a potential issue at the DFM stage is considerably more practical than correcting it after the die has been completed.

ADC12 for a Complex Structural Casting

ADC12 is a common choice for high-pressure aluminum die casting because of its good fluidity and castability.
Those characteristics are useful for a bracket containing ribs, bosses, openings and multiple intersecting structural sections. The upper support and mounting features can be incorporated into the same casting while the open geometry keeps unnecessary material out of the design.
ADC12 is also compatible with the downstream operations required for this component, including trimming, local finishing, secondary machining where required, and powder coating.
The alloy itself, however, is only one part of the manufacturing solution. Wall transitions, draft, rib design, tooling layout and process control all influence the consistency of the finished casting.

Trial Casting Before Production Approval

Tool completion is followed by trial casting, not immediate production.
The first castings allow us to evaluate the actual tool and the resulting component. Casting condition, major dimensions, mounting features and other drawing-defined requirements are checked before samples are submitted for customer evaluation.
The customer then verifies the bracket in the mating assembly.
This is particularly useful for a structural component with several functional interfaces. Dimensional inspection confirms whether specified features meet the drawing; assembly verification confirms whether those features work together in the actual equipment.
If an adjustment is needed, it can be addressed during the validation stage before the process is released for production.
The development path is:
Drawing Review → DFM → Die Design → Tool Manufacturing → Trial Casting → Sample Inspection → Assembly Verification → Customer Approval → Production

Control the Functional Interfaces, Not Every Surface Equally

Not every dimension on a die cast bracket requires the same manufacturing approach.
The features that locate, support or fasten the bracket generally deserve the closest attention. Non-critical exterior surfaces can remain in the as-cast condition when permitted by the drawing, while tighter functional features can be controlled separately.
Where die casting alone cannot reliably meet the specified requirement, secondary CNC machining can be applied to selected features such as:

• mounting holes;
• locating bores;
• mating surfaces;
• threaded features;
• alignment interfaces.

This avoids adding machining operations where they provide no functional benefit.
In practical terms, die casting creates the structural form; CNC machining is used only where the assembly requires additional precision.

Powder Coating a Three-Dimensional Bracket

The final bracket receives powder coating according to the customer's finish specification.
Unlike a simple flat casting, this part contains recessed areas, open windows, internal transitions and multiple supporting arms. Surface preparation and coating therefore need to account for the entire three-dimensional geometry.
Before powder coating, the casting is prepared according to the specified finishing process. Areas that must remain coating-free—such as precision interfaces, threaded holes or defined contact surfaces—can be masked according to the drawing.
Finished parts are checked for coating coverage, visible surface condition and masking quality before packing.

From an Approved Sample to Repeat Production

For purchasing teams, a new die casting project involves more than buying the first set of parts. The tooling and manufacturing process also need to support future repeat orders.
Once the trial parts have passed inspection and assembly verification, the approved drawing, sample requirements and established process become the basis for subsequent production.
The manufacturing route can then remain consistent across die casting, trimming, required secondary machining, powder coating and inspection.
This is one reason sample validation is important: it creates a clear transition from product development to a repeatable supply process.

Custom Aluminum Die Casting From Customer Drawings

We manufacture custom aluminum die cast components based on customer 2D drawings and 3D CAD files, with tooling developed specifically for each non-standard part.
Projects may involve support brackets, mounting bases, structural frames, machinery supports, equipment housings and other custom aluminum castings.
Depending on the component, the scope can include DFM review, die casting tooling, trial casting, sample validation, high-pressure die casting, secondary CNC machining, powder coating and final inspection.
The manufacturing route is defined around the drawing rather than forcing every component through the same process.

From Drawing to a Production-Ready Casting

For a structural bracket, the most important question is not whether a die can reproduce its general shape. The finished casting needs to locate correctly, assemble with the surrounding components and remain practical to manufacture repeatedly.
That is why the project is validated in stages: review the drawing, develop the tooling, produce trial castings, inspect the functional features, verify assembly, and then release production.
If you are sourcing a custom aluminum die cast support bracket, mounting bracket or structural component, send us your 2D drawings and 3D CAD files. We can review the casting geometry, tooling feasibility, critical interfaces, secondary machining requirements and surface finish before die manufacturing begins.
