Custom ADC12 Aluminum Die Cast Heat Sink for Telecommunication Equipment

Telecommunication electronics often operate continuously inside compact enclosures, making thermal management an important part of the housing design. A finned aluminum enclosure can provide structural protection while also helping transfer heat away from internal electronic components.

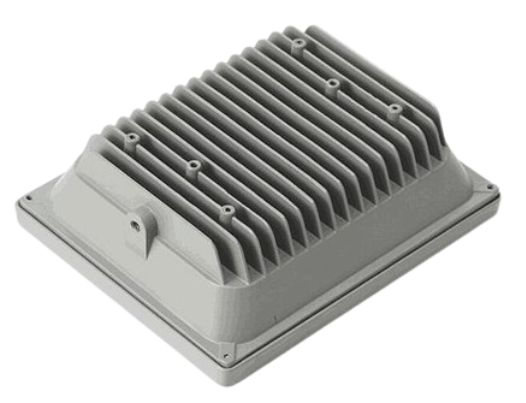

Shown here is a custom aluminum die cast heat sink housing manufactured from ADC12 according to customer-supplied 2D drawings and 3D CAD data. The part measures approximately 130 × 80 × 20 mm and integrates parallel cooling fins, mounting bosses, fastening points and enclosure features into a single casting.
The main geometry is formed with a 2-cavity high-pressure die casting mold. After trimming, selected functional areas are CNC machined, followed by grinding, sandblasting, surface pretreatment and powder coating. The finished housings are supplied for telecommunication equipment in the US market.


Project Specifications

Casting the Cooling Fins Directly into the Housing

The parallel cooling fins define both the function and the manufacturing challenge of this component.
Rather than machining each fin from a solid aluminum block, the fins are formed together with the enclosure during high-pressure die casting. This integrates the heat-dissipation structure and the housing body into one component while reducing unnecessary material removal.
Closely spaced fins, however, require careful consideration during tooling development.
Fin thickness, spacing, draft angle, gate and overflow layout, venting, filling behavior and ejection all influence casting quality. Molten aluminum must reach the narrow fin cavities before solidification while minimizing short shots, cold shuts, excessive flash and other casting defects.
For this reason, the fin structure is reviewed during DFM and tooling development rather than being treated as an ordinary cosmetic feature.


Why ADC12 Works for This Geometry

ADC12 is widely used for high-pressure aluminum die casting because of its good fluidity and castability, particularly for components that combine relatively thin sections with detailed structural features.
Here, the material needs to fill the cooling fins as well as bosses, walls and mounting features within a compact housing.
Material selection for a die cast heat sink is not determined by thermal conductivity alone. Castability, mechanical requirements, part geometry, secondary machining, corrosion protection and final surface treatment also need to be considered.
For this housing, ADC12 provides a practical manufacturing solution for integrating the finned structure with the enclosure geometry.


Secondary CNC Machining Where Accuracy Matters

The casting is designed to produce as much of the final geometry as practical, while secondary CNC machining is reserved for features where dimensional accuracy or surface condition affects assembly.
Depending on drawing requirements, post-casting machining can include:

• machining mounting and mating surfaces;
• drilling, boring or reaming precision holes;
• drilling and tapping threaded features;
• machining locating and alignment features;
• finishing interfaces for mating components;
• removing gate remnants or residual material where required.

Machining allowance is considered before tooling so that critical surfaces retain enough stock for final CNC finishing.
This creates a clear division between the two processes: die casting forms the complex finned housing efficiently, while CNC machining controls the critical interfaces.


Trimming and Finishing a Fin-Dense Casting

Once the casting is ejected, the runner, gate and overflow system must be removed before subsequent machining and finishing.
Trimming and deburring are used to remove residual material and parting-line flash. Local grinding is performed where needed to blend casting marks and prepare the housing for surface treatment.
The cooling fins require particular care during this stage. Their narrow spacing makes access more difficult, and aggressive manual finishing could alter the fin edges or create an inconsistent appearance.
The goal is therefore to remove unwanted casting residue while preserving the intended fin geometry.


From Raw Casting to Powder-Coated Housing

Surface preparation is an important part of producing a consistent powder-coated enclosure.
After CNC machining and local grinding, the housing is sandblasted to clean and homogenize the exterior surface. The specified passivation/conversion pretreatment is then applied before powder coating to support corrosion protection and coating adhesion.
The process route is:
Tooling → High-Pressure Die Casting → Trimming & Deburring → CNC Machining → Grinding → Sandblasting → Passivation Pretreatment → Powder Coating → Inspection → Packing
Not every surface should necessarily receive powder coating.
Threaded holes, precision mating surfaces, grounding/contact locations and other coating-free areas can be masked according to the customer's drawing. Controlling these areas helps prevent coating buildup from affecting fit, fastening or electrical contact.


Inspection Across Casting, Machining and Finishing

Because several manufacturing processes contribute to the finished component, inspection needs to follow the part through each critical stage.
The raw casting is checked for fin completeness, short shots, cold shuts, excessive flash, deformation and visible surface defects. CNC-machined holes, locating features and mating surfaces are then verified against the drawing requirements.
After powder coating, inspection focuses on coating coverage, surface consistency, masking boundaries and visible cosmetic defects.
Handling is also important. The exposed fins can be bent or marked if parts are stacked carelessly, so suitable separation and packaging are used to protect the fin structure and finished surface during transportation.


Custom Aluminum Die Casting for Telecommunication Housings

We manufacture custom aluminum die cast components from customer drawings, including parts that require secondary precision machining and surface finishing after casting.
For telecommunication and electronic equipment, this can include finned heat sink housings, RF enclosures, communication equipment housings, power electronics enclosures and other custom die cast aluminum parts.
The manufacturing route can combine die casting tooling, high-pressure die casting, CNC machining, deburring, surface preparation, powder coating and inspection according to the requirements of the individual component.
This is particularly useful for parts where casting geometry, precision interfaces and surface treatment need to be considered together rather than as separate manufacturing steps.


Engineering Review Before Tooling

For a finned die cast housing, many of the important manufacturing decisions are made before the mold is built.
Fin geometry influences metal flow and ejection. Machining allowance affects the final accuracy of mating surfaces. Hole and boss design influences both casting and secondary machining. Powder coating requirements determine which functional areas need masking.
Reviewing these details early can reduce unnecessary machining and help establish a more stable route from the raw casting to the finished enclosure.
For a custom aluminum die cast heat sink, telecommunication equipment housing or electronic enclosure, send us your 2D drawings and 3D CAD files. We can review the fin geometry, die casting feasibility, tooling concept, machining allowance, CNC requirements and surface finish before tooling begins.
