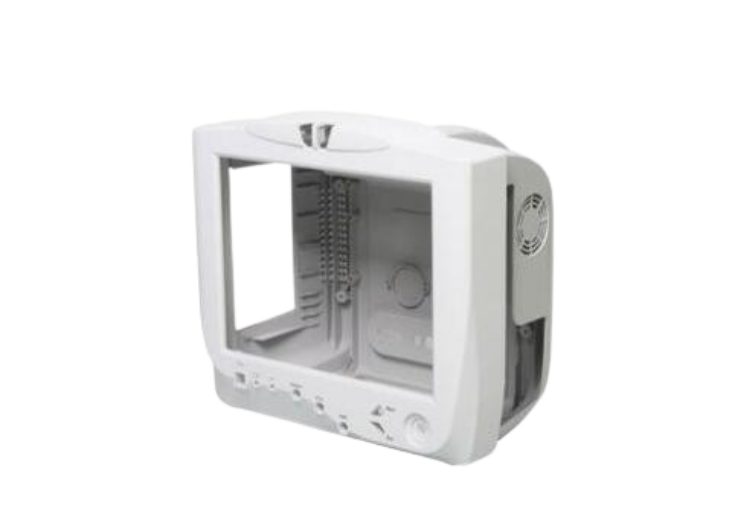

CNC Machined ABS Housing for Medical Equipment

This project involved a custom ABS housing for medical equipment, manufactured from customer-supplied 3D CAD data and technical drawings.

Unlike a simple standalone cover, the enclosure consists of several CNC machined plastic components built around the internal equipment. The large front frame, functional openings, side features and internal mounting areas all need to correspond with displays, controls, connectors and other hardware inside the unit.

The parts were produced using plastic CNC machining, checked with the related components, then sanded and finished in white.

For this type of medical equipment project, machining each plastic part accurately is important, but so is understanding what sits behind it and how it functions within the complete enclosure.

Project Overview

A Medical Housing Designed Around the Equipment Inside

The enclosure is closely connected to the internal layout of the medical equipment.

The front section has a large central opening surrounded by a broad ABS frame. Several smaller openings are positioned around the lower area, while the side structure includes ventilation features. Internal space also needs to be maintained for mounting structures, electronics and other hardware.

Each feature has a purpose.

The main opening may correspond with a display or functional module. Smaller cutouts may provide access for controls, switches or connectors. Ventilation features need to remain in the intended position, while internal structures cannot interfere with the components installed behind the enclosure.

For a multi-component project like this, the complete assembly CAD can provide useful context in addition to the individual part drawings.

It helps show not only what each plastic component looks like, but also what it needs to fit around or connect with.

CNC Machining the Large ABS Front Frame

One of the most distinctive features of this housing is the large front opening.

Machining this type of frame-like ABS component is different from machining a small, solid plastic part. A substantial amount of material is removed from the center while the remaining perimeter becomes part of the visible equipment housing.

As the geometry changes during machining, workholding, part support and material-removal sequence need to be considered.

The frame also contains several smaller openings and local features that need to maintain their intended positions relative to the main opening and outer profile.

For this type of ABS CNC machining, the challenge is less about one exceptionally tight dimension and more about maintaining the overall relationship between the frame, openings, interfaces and adjoining components.

Every Opening Has a Function

An opening in a medical equipment housing is rarely just a geometric feature.

Something normally sits behind it, passes through it or needs access through it.

A large cutout may be designed around a display. A smaller opening may correspond with a switch, button or connector. Other features may provide ventilation or access to internal hardware.

This means position can be just as important as the shape of the opening itself.

A front panel may look correct when inspected separately, but if an opening does not correspond properly with the hardware behind it, the problem becomes obvious when the equipment is assembled.

For custom plastic CNC machining, understanding these functional relationships helps identify which features deserve particular attention during manufacturing and inspection.

Several Plastic Parts Have to Work as One Enclosure

The complete medical housing is made from multiple plastic sections rather than one monolithic component.

Each part has its own geometry and drawing requirements, but the customer ultimately needs them to form one enclosure around the equipment.

Depending on the design, trial assembly can be used to review:

• front frame positioning;
• alignment between adjoining panels;
• display and control openings;
• connector locations;
• mounting and locating features;
• clearance around internal hardware;
• ventilation areas;
• visible exterior joints.

This type of check can reveal issues that are difficult to identify by measuring components individually.

It can also help distinguish between a machining issue and a design issue when the physical equipment is being evaluated.

CNC Machining for Medical Equipment Development

For this project, CNC machining was useful for more than producing ABS parts without dedicated production tooling.

It allowed the customer to install physical enclosure components around the actual equipment and evaluate the design in its intended assembly environment.

Engineers can check practical questions such as:

Is there enough clearance for the internal hardware?

Do the display and control openings line up correctly?

Can the adjoining housing sections be installed without interference?

Does the completed enclosure match the intended product design?

If the physical build reveals a problem, the CAD data can still be revised and updated components can be machined for the next development iteration.

This makes plastic CNC machining services useful for medical equipment prototypes and low-volume builds where enclosure design needs to be verified before the project moves further toward production.

From Machined ABS to a Finished White Housing

The customer specified ABS for the enclosure and required a white exterior finish.

After CNC machining and assembly verification, the visible surfaces were sanded and prepared for painting.

Surface preparation is particularly important across the broad front and side areas. CNC tool marks or local transitions that appear subtle on raw ABS may become more noticeable after coating.

The housing also consists of several separately manufactured sections that appear together on the finished equipment.

For this reason, the finishing process needs reasonable consistency across adjoining exterior surfaces so that the components present a coherent appearance after assembly.

Custom Plastic CNC Machining Services for Medical Equipment

YS Precision provides plastic CNC machining services for custom medical equipment housings, instrument enclosures and engineering plastic components manufactured from customer 3D CAD models and technical drawings.

Typical parts include:

• medical equipment housings and covers;
• front frames and bezels;
• instrument enclosures;
• control panels;
• internal mounting parts;
• custom plastic structural components.

Materials available for CNC machining include ABS, PC / Polycarbonate, POM / Delrin, Nylon, PEEK, PEI, PMMA, PP and PTFE.

For projects involving multiple related parts, customers can also provide the complete assembly model. This gives our engineers a clearer understanding of component interfaces and the surrounding hardware before machining begins.
