5-Axis CNC Machined 7075 Aluminum Component for Automation Equipment

Precision Multi-Sided Aluminum Machining for Custom Automation Systems

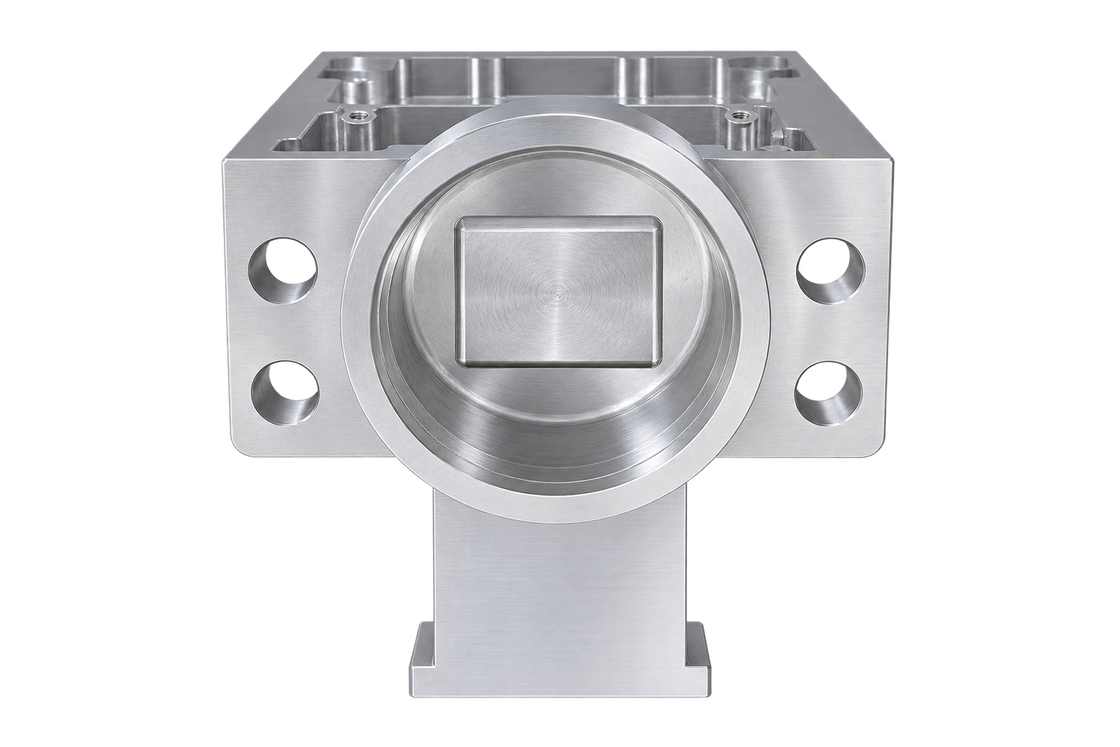

This project involved manufacturing a precision CNC machined 7075 aluminum component used in an automation equipment system.

Designed according to customer engineering requirements, the component features a compact but complex structure with multiple machined surfaces, precision holes, and functional locating areas.

Due to the three-dimensional geometry and the relationship between different machined features, the part required a carefully planned 5-axis CNC machining process to achieve consistent accuracy and reduce errors caused by multiple setups.

The component was machined from 7075 aluminum with an approximate size of 200 × 180 × 75 mm.

Critical hole accuracy was controlled within ±0.05 mm, and approximately 100 pieces were produced and shipped to Israel for integration into the customer's automation equipment.

Project Overview

5-Axis CNC Machining for Complex Automation Components

The main challenge of this component was maintaining the accuracy relationship between multiple functional surfaces.

Unlike simple CNC machined brackets or plates, this part contains features located on different faces, including:

• Precision locating surfaces
• Multiple machining orientations
• Functional holes
• Assembly reference areas

Using 5-axis CNC machining allowed more features to be completed within fewer setups.

This helped improve:

• Feature alignment
• Position accuracy
• Production consistency

For automation equipment components, these details directly affect assembly performance and repeatable machine operation.

7075 Aluminum CNC Machining for High-Strength Mechanical Parts

The customer selected 7075 aluminum because the component required a combination of strength, rigidity, and lightweight design.

Compared with common aluminum alloys, 7075 aluminum offers:

• Higher mechanical strength
• Excellent strength-to-weight ratio
• Good fatigue resistance
• Reliable performance for precision mechanical applications

During machining, process parameters were carefully controlled to balance:

• Material removal efficiency
• Dimensional stability
• Surface quality
• Tool performance

Precision Hole Machining and Assembly Accuracy

The component includes precision holes used for positioning and mechanical assembly.

The critical hole requirement was:

±0.05 mm

Inspection focused on more than individual hole dimensions.

The relationship between:

• Hole positions
• Machined surfaces
• Locating features

was carefully controlled to ensure proper integration with the customer's automation system.

Manufacturing Challenges of Multi-Sided Aluminum Parts

Although the overall size of this component is moderate, its multi-sided structure requires careful process planning.

The main manufacturing considerations included:

Reducing Setup Variation

Multiple machining orientations can introduce positioning differences.

The machining strategy was developed to minimize:

• Re-clamping errors
• Feature alignment deviation
• Accumulated tolerance variation

Maintaining 7075 Aluminum Stability

7075 aluminum provides excellent strength but requires proper machining control.

The process considered:

• Tool selection
• Cutting conditions
• Workholding method
• Finishing sequence

to achieve stable production results.

Engineering Review Before CNC Production

The component was manufactured based on customer-provided engineering information.

Before machining, the process was reviewed according to:

• Part geometry
• Machining accessibility
• Critical dimensions
• Functional requirements

This engineering approach helps ensure the manufacturing process matches the final application requirements.

Low-Volume Precision Manufacturing for Automation Systems

Automation equipment manufacturers often require specialized mechanical components in limited quantities.

Although this project was not a high-volume production part, it required production-level consistency.

The manufacturing focus included:

• Repeatable CNC machining
• Stable dimensional control
• Consistent quality inspection
• Reliable delivery performance

Quality Control for Precision Automation Components

For automation-related mechanical parts, dimensional accuracy directly affects equipment performance.

Inspection included:

• Material verification
• Critical hole measurement
• Dimensional inspection
• Surface quality checking
• Final quality verification

Finished components were carefully packaged to protect the machined surfaces during international transportation.

Precision CNC Machining Experience for Automation Equipment Parts

Complex automation components require a combination of machining capability and engineering understanding.

This project required:

• 5-axis CNC machining
• 7075 aluminum processing
• Multi-face machining control
• Precision feature positioning

The successful production of this component demonstrates the ability to manufacture customized mechanical parts where accuracy, repeatability, and assembly performance are critical.
