Medical Device Housing Vacuum Casting for Cosmetic-Grade Parts

PC-Like PU Housings with Controlled Surface Quality and RAL 9011 Finish

Medical device housings often serve two purposes at the same time: they protect or support internal components while also forming part of the visible product exterior.
For these appearance-critical plastic parts, producing the correct shape is only the beginning. Surface smoothness, edge definition, coating quality, and visual consistency across the batch can all influence how representative the finished housings are.
For this project, the customer required approximately 20 custom medical equipment housings for export to the Middle East. The component had a long, narrow profile with extended cosmetic surfaces, defined outer edges, and several transitions along the housing.

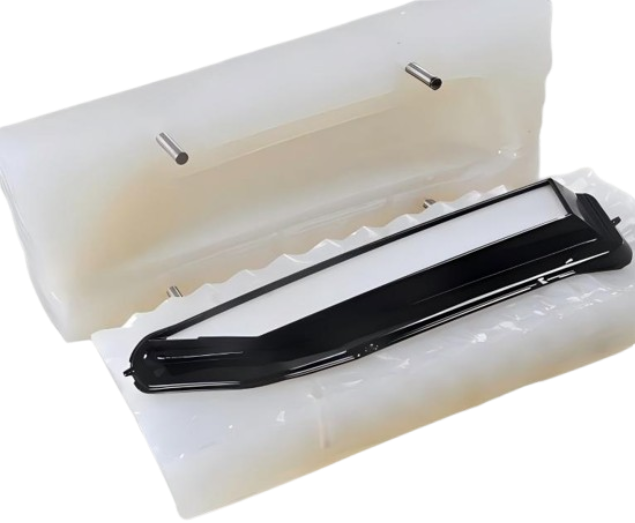

We produced the parts through vacuum casting using PC-like polyurethane (PU). The master pattern received detailed surface preparation before silicone mold making, followed by casting, individual part refinement, and RAL 9011 black painting.
The manufacturing focus was clear: maintain a controlled cosmetic surface from the master pattern through to the finished batch.

Project Details

Why This Housing Requires Careful Surface Control

The long visible surface is one of the defining characteristics of this component.
On a small textured internal part, minor surface variation may have little influence on its intended use. On a long exterior housing, however, reflected light can make small imperfections much easier to notice.
Typical cosmetic concerns include:

• Sanding marks
• Surface waviness
• Scratches
• Gate-removal traces
• Parting-line marks
• Uneven edge transitions
• Local depressions
• Inconsistent painted surfaces

This means the manufacturing target cannot simply be described as “smooth.”
The objective is to maintain continuous surfaces, clean transitions, defined edges, and a consistent appearance across the complete housing.

Surface Quality Starts Before Silicone Mold Making

Vacuum casting reproduces the geometry of a master pattern through a silicone mold. It can also reproduce small surface details.
This makes the condition of the master particularly important.
If obvious machining marks, scratches, uneven sanding, or poorly repaired areas remain on the master, these imperfections can be transferred into the silicone tooling and subsequently appear on multiple cast parts.
For a 20-piece batch, one defect on the master can become a repeated finishing problem.
For this project, the master pattern therefore went through controlled preparation before mold making:
Master Manufacturing → Surface Inspection → Progressive Sanding → Edge Refinement → Final Surface Check → Silicone Mold Making
Spending more effort at this stage can reduce repeated manual correction later.

Protecting the Intended Geometry During Sanding

For appearance parts, more sanding does not automatically mean better quality.
This is particularly relevant to a housing with long edges and defined transitions.
Excessive manual sanding can soften an intended edge, alter a local contour, or create an uneven surface. Insufficient sanding can leave manufacturing marks that become visible after painting.
The objective is therefore to improve the cosmetic surface without changing the intended CAD geometry.
Special attention was given to the long exterior surfaces, edge transitions, and areas that would remain visually exposed on the assembled medical equipment.
This distinction is important for product development teams: cosmetic finishing should refine the component, not redesign it.

PC-Like PU for Low-Volume Medical Housings

The customer specified material characteristics similar to PC, so a PC-like polyurethane (PU) casting resin was selected.
For this application, PC-like PU provided a useful combination of:

• Rigidity
• Toughness
• Good detail reproduction
• Stable housing structure
• Good paintability
• Suitability for low-volume replication

It is important to distinguish PC-like PU from actual polycarbonate.
Vacuum casting resin can simulate selected characteristics of PC, but it does not automatically provide the same mechanical, thermal, flame-retardant, chemical, or regulatory properties as a specified production PC grade.
If those properties are critical to testing, the material and manufacturing route should be reviewed separately.

Post-Casting Finishing Still Matters

A high-quality master establishes a good starting point, but each cast part still requires individual attention.
After demolding, the housings were checked for areas such as:
Casting Gates + Parting Lines + Flash + Edges + Local Surface Marks
These areas were trimmed, deburred, and carefully refined.
The surface was then inspected again before coating.
This intermediate inspection is important because paint should not be used as a way to hide poor substrate preparation. Many defects remain visible—and can even become more obvious—after a dark cosmetic coating is applied.

RAL 9011 Black Painting

The customer specified RAL 9011 for the finished housings.
Before painting, the surfaces were cleaned and checked to ensure that visible defects had been addressed.
During finishing, attention was given to:

• Color consistency
• Surface uniformity
• Coverage around edges
• Long visible surfaces
• Curved transitions
• Local recessed areas
• Overall appearance between parts

The final coating completed the cosmetic requirement, but the quality of that finish depended heavily on all the manufacturing stages that came before it.
In other words:

Paint provides the final appearance; it does not create the underlying surface quality.

Maintaining Cosmetic Consistency Across 20 Parts

Producing one attractive housing and producing 20 housings with a similar appearance are different manufacturing challenges.
For a low-volume batch, consistency depends on several linked stages:
Qualified Master Pattern
→ Stable Silicone Mold
→ Controlled PC-Like PU Casting
→ Consistent Manual Refinement
→ Controlled RAL 9011 Painting
→ Final Appearance Inspection
This process helps establish a common cosmetic reference across the batch rather than treating every part as an independent prototype.
For engineering teams, multiple consistent housings can be useful for product builds, internal evaluation, customer presentations, design review, or other development-stage requirements.

A Different Approach to Medical Device Housing Prototypes

This project was not driven primarily by complicated internal geometry or extremely tight machining tolerances.
The manufacturing challenge came from the combination of:
Long Cosmetic Surfaces

• PC-Like PU
• Master Pattern Surface Quality
• Low-Volume Replication
• Part-to-Part Appearance Consistency
• RAL 9011 Black Finish

For this type of component, vacuum casting is not simply a way to produce 20 plastic parts.
It is a process of transferring a controlled surface standard from master → silicone mold → cast part → painted housing.

Vacuum Casting for Custom Medical Device Housings

YS Precision provides vacuum casting and urethane casting services for custom medical equipment housings and low-volume plastic components, with support for master pattern preparation, silicone tooling, casting, cosmetic finishing, and inspection.
For appearance-critical housing projects, send us your:

• 3D CAD files
• Required quantity
• Material requirement
• Critical cosmetic surfaces
• RAL or Pantone color
• Surface finish requirement
• Intended use of the parts

These details help us evaluate not only how to manufacture the geometry, but also how the required appearance should be controlled throughout the process.
For cosmetic vacuum casting parts, surface quality should be planned before the silicone mold is made—not corrected only after the parts are cast.
