303 Stainless Steel CNC Machined Parts for Precision Instruments

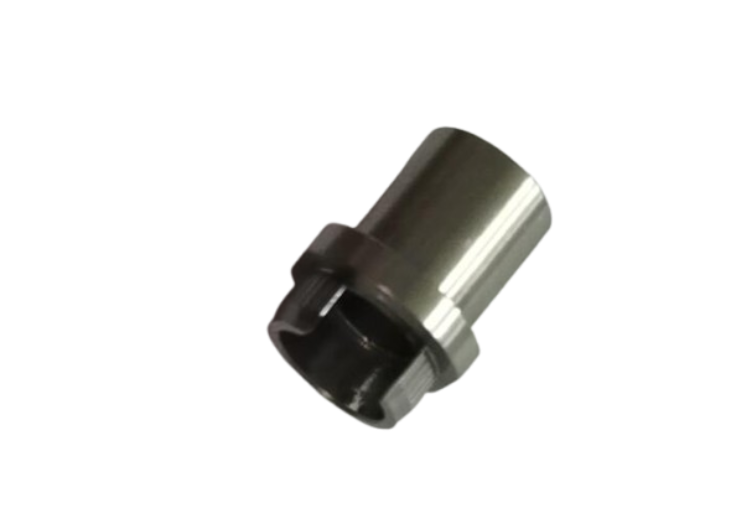

This 303 stainless steel component was produced for precision instrument equipment and shipped to a customer in the United States.

The part is approximately 45 × 18 mm, with an order quantity of around 4,000 pieces. Several critical dimensions are specified at ±0.05 mm, and the production batch was completed in about two weeks.

Although the outside is mostly cylindrical, this is not a simple turned sleeve. The component has a relatively large internal cavity, stepped outside diameters and additional features around one end. The machining route combines CNC turning, internal boring and milling to complete these features from the customer drawing.

Project Information

Much of the Machining Happens Inside the Part

From the outside, the component looks like a fairly conventional stainless steel turned part. The cylindrical body, stepped diameters and shoulder are all well suited to CNC turning.

The internal cavity makes the machining more interesting.

A substantial amount of material is removed from inside a body only about 18 mm in diameter. The bore and internal profile have to be machined while maintaining the surrounding wall and the external dimensions called out on the drawing.

This also affects the machining sequence. Internal and external features cannot always be considered independently, particularly where a later milled feature sits close to the cavity.

For this part, we establish the main turned geometry and internal bore first, then complete the remaining non-rotational features through milling.

Why 303 Stainless Steel Works Well Here

The customer specified 303 stainless steel, a practical grade for a component involving turning, boring and milling.

With approximately 4,000 pieces to produce, machinability has a direct effect on the production run. Internal machining also requires reasonable chip control, while tool condition needs to remain stable as the same features are repeated across the batch.

Rather than changing the process continuously, the aim is to establish suitable cutting conditions and monitor the dimensions that matter as production continues.

That is particularly useful for a part with both internal and external machining.

±0.05 mm Where the Drawing Requires It

Several critical dimensions are controlled to approximately ±0.05 mm.

We do not treat this as a blanket tolerance for every surface.

Depending on the drawing, the critical features may include the internal bore, a stepped outside diameter, shoulder position or the location of a milled feature. Inspection follows those requirements rather than applying unnecessary precision everywhere.

For a production order, consistency across 4,000 parts is more important than producing one unusually accurate sample.

The End Features Complete the Geometry

After the main turning and internal machining are finished, the remaining end features still need another cutting direction.

These details are completed by milling as part of the CNC turn-mill machining process.

Their position needs to remain correctly related to the bore, shoulders and other turned geometry. After machining, the interrupted edges are also checked and deburred, particularly where milled features meet the internal opening.

A typical production route is kept fairly direct:

Bar Stock → CNC Turning & Internal Boring → Milling → Deburring → Inspection → Packing

There is no reason to add more operations if the required geometry can be produced reliably with a shorter route.

4,000 Parts in About Two Weeks

The batch was completed in approximately two weeks.

For this quantity, lead time depends on the complete production flow rather than machine cycle time alone. Turning, milling, tool changes, deburring and inspection all need to move through production without creating a bottleneck.

Relevant dimensions were checked during the run instead of waiting until all 4,000 pieces were finished.

This allowed bore dimensions, stepped diameters and other critical features to be monitored while there was still time to make an adjustment if needed.

Made for Precision Instrument Equipment

Parts used in precision instruments are often small, but the way individual features relate to each other can be important during assembly.

On this component, the bore, outside steps, shoulder and milled geometry belong to the same finished part. Producing each feature individually is only part of the job; their dimensional relationships still need to follow the engineering drawing.

That is why we look at the complete geometry before deciding how much should be turned, bored or milled.

For some components, CNC turning alone is enough. Others are better suited to turn-mill machining when round and non-rotational features appear on the same part.

Custom 303 Stainless Steel CNC Machining

YS Precision manufactures custom 303 stainless steel CNC machined parts from customer 2D drawings and 3D models.

Our machining work includes CNC turning, CNC milling, internal boring, turn-mill machining, drilling, threading and grooving. The exact process depends on the part rather than following the same route for every cylindrical component.

For precision instrument hardware, we review the material, internal and external geometry, critical dimensions and order quantity before production.

This allows the machining method to be built around what the drawing actually requires.

Have a Similar Stainless Steel Part?

This project involved approximately 4,000 pieces of 303 stainless steel hardware for precision instrument equipment, produced for a U.S. customer in about two weeks.

The component is compact, but its combination of a deep internal area, stepped turned surfaces and milled end geometry requires more than basic CNC turning.

If you are sourcing similar 303 stainless steel machined parts, send us the drawing, quantity, material requirement and critical tolerances. We can review the geometry and quote the machining based on the actual production requirements.
