Custom 42CrMo Alloy Steel Helical Gears

When a standard gear cannot match the required tooth geometry, shaft interface or material condition, manufacturing from the original engineering drawing provides greater control over the complete transmission component.

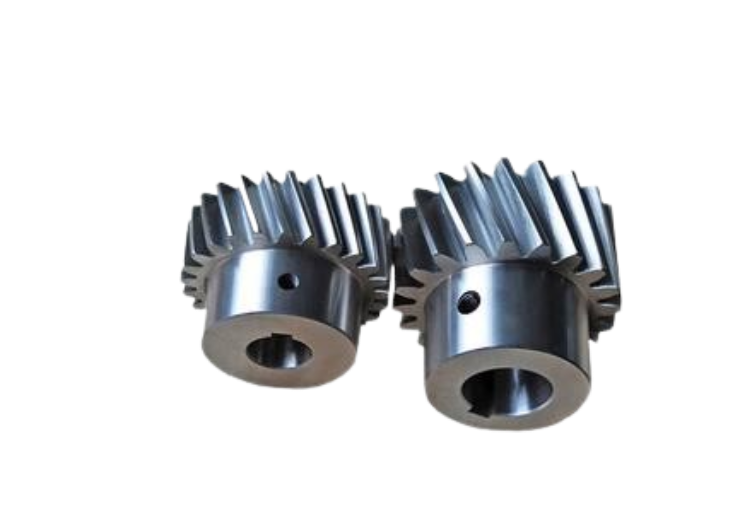

The parts shown here are custom helical gears made from 42CrMo alloy steel, combining external helical teeth with an integrated hub, precision bore and keyway. Module, tooth count, pressure angle, helix angle, helix direction and dimensional requirements are all defined by the customer's 2D drawing.

For this project, the gears undergo quenching and tempering followed by nitriding. The production route therefore needs to coordinate blank machining, shaft features, helical tooth generation and heat treatment around the final requirements of the gear.

YS Precision provides custom helical gear manufacturing and gear machining services for non-standard transmission components, from machined gear blanks through tooth production, heat treatment and final inspection.

Project Overview

Helical Gear Geometry Made to Customer Drawings

The angled tooth form is the defining feature of this component.

Unlike a spur gear, whose teeth run parallel to the shaft axis, a helical gear uses a specified helix angle and helix direction. These parameters form part of the mating relationship between gears and must correspond with the transmission design.

The engineering data typically defines:

Module · Tooth Count · Pressure Angle · Helix Angle · Helix Direction · Gear Width

Rather than selecting a standard gear by outside diameter and modifying it afterward, we manufacture the tooth geometry around the specified gear data.

For mating helical gears, the relationship between the two components also needs to be considered before the machining setup is established.

Bore and Keyway Machining for the Shaft Connection

The center features are just as functional as the teeth.

An integrated hub surrounds the machined bore, while the keyway provides the mechanical connection between the gear and shaft. A radial hole is also incorporated into the hub according to the component design.

In the finished assembly:

Helical Teeth → Transfer motion between mating gears
Bore & Keyway → Transfer torque between the gear and shaft

This is why bore and keyway machining are treated as part of the complete gear rather than secondary operations.

Where specified, bore tolerance, keyway dimensions, runout and concentricity are controlled in relation to the rotational axis.

Machining the 42CrMo Gear Blank

42CrMo alloy steel is commonly used for mechanical and transmission components requiring a combination of strength, toughness and heat-treatment capability.

Before the teeth are produced, the material is machined into the required gear blank. CNC turning establishes the faces, hub, bore and other reference geometry needed for subsequent operations.

A representative process route for this component is:

42CrMo Blank → CNC Turning → Bore & Hub Machining → Keyway Machining → Helical Gear Hobbing → Deburring → Quenching & Tempering → Nitriding → Final Inspection

The actual sequence is determined by the gear geometry, accuracy requirements, tolerances and final heat-treated condition.

Planning the complete route before machining begins is especially important when both shaft features and gear teeth must meet requirements after heat treatment.

Helical Gear Hobbing to Drawing-Specified Parameters

After the blank and reference features are established, the external helical teeth are generated according to the specified gear parameters.

Helical gear hobbing needs to account for the module, tooth count, pressure angle, helix angle and helix direction defined by the design.

For a mating pair, these parameters cannot be considered independently. The tooth geometry needs to correspond with the intended gear engagement and transmission arrangement.

Combining blank machining, bore and keyway features, and helical gear hobbing within the same manufacturing program also simplifies sourcing for customers who need a finished gear rather than a partially machined blank.

Quenching & Tempering Followed by Nitriding

The specified heat-treatment route for this 42CrMo gear is quenching and tempering (Q&T), followed by nitriding.

Quenching and tempering establishes the required core condition of the alloy steel. Nitriding is then applied to achieve the specified hardened surface layer.

The required hardness and nitriding depth should be defined by the engineering specification rather than assumed from the material grade alone.

This matters because gears manufactured from the same 42CrMo alloy can operate under very different loads, speeds and lubrication conditions.

The heat-treatment specification is therefore considered together with the intended application and final component requirements.

Planning Final Dimensions Around Heat Treatment

Although heat treatment takes place later in production, its effect needs to be considered before machining is complete.

The finished component brings together three functional areas:

Helical tooth geometry — for mating gear engagement
Bore and keyway geometry — for shaft connection
Nitrided surface condition — for the specified final material properties

If critical dimensions are specified in the final heat-treated condition, the machining plan needs to account for those requirements from the beginning.

Final inspection may include:

• bore and keyway dimensions;
• drawing-defined tooth characteristics;
• runout and concentricity where specified;
• final hardness;
• nitriding depth;
• edge and surface condition.

Any required post-treatment finishing can then be planned as part of the process rather than introduced later as a corrective operation.

Custom Helical Gear Manufacturing Services

YS Precision provides custom helical gear manufacturing services for industrial machinery and mechanical transmission applications.

Depending on the component, our production scope can combine:

CNC Turning · Gear Blank Machining · Bore Machining · Keyway Machining · Helical Gear Hobbing · Heat Treatment · Nitriding · Dimensional Inspection

We manufacture custom helical gears, alloy steel gears and other non-standard transmission components according to customer 2D drawings and 3D CAD data.

The objective is not simply to cut the teeth, but to manufacture the complete gear around its tooth geometry, shaft interface, material condition and final dimensional requirements.

What We Need to Quote Your Helical Gear

For a new custom helical gear project, please send your 2D engineering drawing and 3D CAD model where available.

Useful RFQ information includes:

Material · Module · Tooth Count · Pressure Angle · Helix Angle · Helix Direction · Gear Width · Bore · Keyway · Gear Accuracy · Critical Tolerances · Heat Treatment · Required Hardness · Nitriding Depth · Quantity

With these details, we can review the machining, hobbing, heat-treatment and inspection requirements and prepare a quotation based on the complete component.
