Textured Vacuum Casting Parts for an Electronic Housing

Fine Surface Texture Reproduction for a White Prototype Enclosure

For an electronic product housing, reproducing the correct geometry is only part of the prototype development process.

When the enclosure is a visible component of the final product, the surface texture, color, gloss, and cosmetic quality also need to be evaluated before production tooling is committed.

For this project, the customer required approximately 10–20 white prototype housings for an electronic product. The intended production material was ABS, while the prototype parts were manufactured using vacuum casting.

The key requirement was a fine, molded-style surface texture on the housing.

Rather than creating the texture through the final paint alone, the surface was developed directly on the master pattern. The pattern was carefully sanded and then fine sandblasted before the silicone mold was produced.

This allowed the fine texture to be transferred through the silicone mold onto the vacuum casting parts.

After casting, the parts were trimmed, deburred, surface-refined, and painted white before being supplied to the customer for product evaluation.

Project Specifications

The Challenge: Reproducing a Fine Molded Surface

The housing itself has a relatively simple overall form.

The more important challenge was the surface appearance.

The customer wanted the prototype to resemble the fine textured surface normally seen on an injection-molded electronic enclosure.

A completely smooth master pattern would produce a smooth silicone mold and, consequently, a smooth casting surface.

Painting the casting white would provide the required color, but it would not reproduce the same molded texture.

Therefore, the texture needed to be introduced before the silicone mold was made.

The manufacturing concept was:

Master Pattern
↓
Fine Surface Preparation
↓
Fine Sandblasting
↓
Silicone Mold
↓
Vacuum Casting
↓
Trimming & Deburring
↓
White Painting

This approach allowed the texture to become part of the replicated mold surface.

Fine Texture Begins with the Master Pattern

In vacuum casting, the master pattern acts as the surface reference for the silicone mold.

This makes master-pattern preparation especially important when the finished prototype has large visible cosmetic surfaces.

The pattern was first carefully sanded to establish a clean and uniform surface.

Any unwanted scratches, machining marks, or surface defects could potentially be transferred to the silicone mold and subsequently reproduced on multiple parts.

Once the base surface had been prepared, fine sandblasting was used to create the required subtle texture.

The goal was not to create an obviously rough surface.

Instead, the objective was a fine and uniform texture with a molded-plastic appearance.

Texture Transfer Through the Silicone Mold

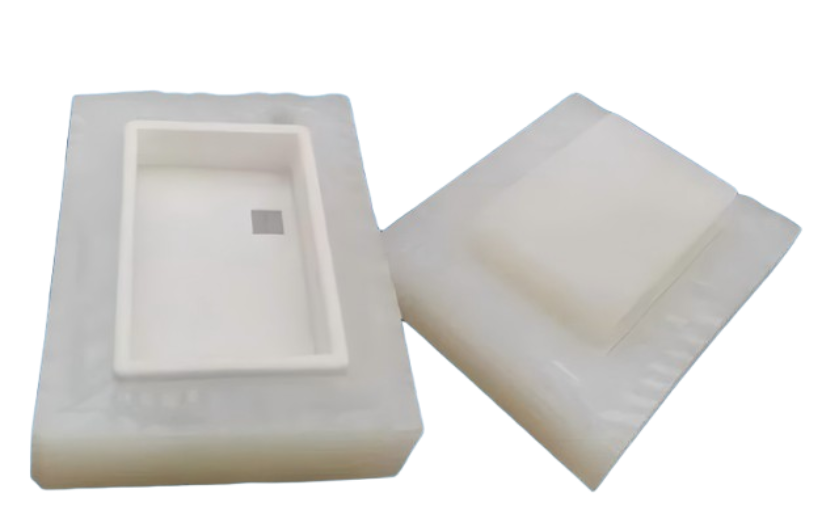

After the surface treatment of the master pattern was completed, the silicone mold was produced.

The fine texture on the master pattern became part of the mold surface.

During vacuum casting, this texture was transferred onto the prototype housing.

This is an important difference between:

Creating a matte appearance through paint

and

Reproducing a textured molded surface through the mold itself.

For this project, the second approach was selected because the customer wanted the prototype to be visually closer to the intended production housing.

White Surface Finishing

Once the vacuum casting process was completed, the parts were not considered finished immediately.

Additional cosmetic work was required.

Trimming

Excess material and casting features were removed.

Deburring

Unwanted edges and flash were carefully cleaned.

Surface Refinement

The parts were prepared for the coating process while preserving the required surface characteristics.

White Painting

A white coating was applied to achieve the specified final appearance.

The finishing process therefore focused on the combination of:

Texture + Color + Surface Quality + Edge Condition

rather than color alone.

Why the Master Pattern Surface Matters

A small defect on the master pattern can potentially become a repeated defect on multiple castings.

This is particularly important for electronic housings because the outer surfaces are usually highly visible.

Master-pattern preparation therefore requires attention to:

• Surface uniformity
• Fine scratches
• Tool marks
• Texture consistency
• Corners
• Edges
• Transitions between surfaces
• Cosmetic defects

For appearance-sensitive prototypes, the quality of the final vacuum casting parts is strongly influenced by decisions made before the silicone mold is produced.

Approximately 15 Parts for Prototype Evaluation

The customer required only a small quantity of approximately 10–20 pieces.

At this stage, the purpose was not mass production.

The samples were intended to support product development and provide physical references for evaluation.

The parts could be used for:

• Design review
• Assembly checking
• Appearance evaluation
• Internal engineering review
• Product demonstrations
• Customer presentations
• Cosmetic approval
• Pre-production assessment

Producing several parts also allowed the customer to compare the consistency of the finish across a small batch.

Why Vacuum Casting Instead of Production Tooling?

For a product that is still under development, the final housing design may change after physical evaluation.

Moving directly into injection mold tooling can therefore create unnecessary cost and risk if the geometry or appearance later needs to be modified.

Vacuum casting provides an intermediate manufacturing option for producing a limited number of representative parts.

The development sequence can be:

CAD Design
→ Master Pattern
→ Surface Texture Development
→ Silicone Mold
→ Vacuum Casting
→ Finishing
→ Product Evaluation
→ Production Tooling

This allows the customer to make design and appearance decisions using physical parts before committing to the final production mold.

A Prototype for Both Engineering and Appearance Review

An electronic housing prototype may need to answer two different types of questions.

Engineering Questions

• Does the housing fit the internal components?
• Are the interfaces positioned correctly?
• Does the enclosure assemble correctly?
• Are the mating features working as intended?

Appearance Questions

• Is the surface texture correct?
• Is the white finish suitable?
• Is the gloss level appropriate?
• Are the visible surfaces consistent?
• Does the prototype resemble the intended production product?

A useful prototype should provide information for both.

That is why the surface preparation and finishing process were treated as part of the engineering plan for this project.

From Prototype Surface to Production Specification

A finished prototype can also become a useful physical reference for the future production part.

Once the customer approves the appearance, the prototype can help establish expectations for:

• Surface texture
• Color
• Gloss level
• Cosmetic quality
• Edge appearance
• Overall enclosure finish

When the project moves to injection molding, these requirements can then be translated into the production tooling and finishing specifications.

The prototype therefore serves as a bridge between product design and production manufacturing.

Manufacturing Workflow

The complete process for this electronic housing included:

01 — Design Review

Review the 3D CAD model, quantity, material requirements, and cosmetic specifications.

02 — Master Pattern

Manufacture the original pattern according to the approved design.

03 — Fine Sanding

Prepare the surface and remove unwanted marks.

04 — Fine Sandblasting

Create the required molded-style texture.

05 — Silicone Mold

Produce the mold from the prepared master pattern.

06 — Vacuum Casting

Manufacture the required low-volume prototype housings.

07 — Trimming & Deburring

Remove casting flash and unwanted material.

08 — Surface Refinement

Prepare the parts for final finishing.

09 — White Painting

Apply the required white cosmetic finish.

10 — Inspection

Check the finished samples before shipment.

Low-Volume Vacuum Casting for Electronic Housings

This project is a good example of where vacuum casting can be useful during electronic product development.

The quantity was small, but the prototype still required controlled manufacturing and cosmetic finishing.

The finished parts needed to combine:

Low-volume production

• Fine surface texture
• White cosmetic finish
• Clean edges
• Consistent appearance
• Electronic housing geometry

The result was a batch of physical prototypes suitable for the customer's next stage of product evaluation.

When Surface Quality Is Part of the Prototype Requirement

Not every prototype requires the same level of surface preparation.

For some engineering samples, dimensional accuracy and basic functionality may be the primary concerns.

For visible consumer and electronic products, however, surface appearance can be part of the product specification.

In these situations, the manufacturing process needs to consider the surface from the beginning:

CAD → Master Pattern → Surface Treatment → Mold → Casting → Finishing

rather than adding cosmetic treatment only at the end.

This approach provides a more useful physical reference for product development.

Vacuum Casting Parts for Electronic Product Development

If you need low-volume vacuum casting parts for an electronic housing or plastic enclosure, provide your 3D CAD files together with the required quantity, material, color, texture, and finishing requirements.

The manufacturing process can be planned around the intended prototype purpose, including:

• Master pattern preparation
• Surface texture reproduction
• Silicone mold making
• Vacuum casting
• Trimming and deburring
• Sanding
• Painting
• Cosmetic inspection

For appearance-sensitive electronic products, the goal is not simply to reproduce the shape.

The prototype should provide a reliable physical reference for the product that comes next.
